PR Flow Measuring System
![](images/pr_flow_measuring_system_machine.jpg)
The PR Dispense Volume can be checked, and by managing the data using the FDC, manufacturing process accidents can be prevented. The PR usage can be reduced through real-time monitoring, thus help reduce costs.
- Measurements between 0.3 to 3 seconds can be made.
- The PR Volume can be detected in the Auto Detection Mode.
- The Offset value can be adjusted after measuring the Dispense amount.
- The Alarm Range can be set-up.
- It can be connected to the equipment.

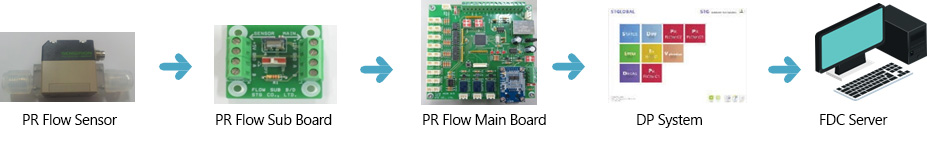

Diagram
![](images/pr_flow_measuring_system_diagram.jpg)

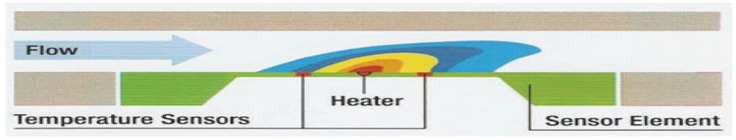

Measurement Method
![](images/measurement_method.jpg)
When PR Flow is activated, fine heat (0.03℃) is generated from the Heater and the PR’s Volume is Checked by detecting the temperature change (∆T) from the temperature change of S1 and S2’s temperature Sensors.
