Differential Monitoring System

The Differential System can prevent manufacturing process accidents due to overpressure beforehand, minimize damage through the FDC when the standard Data is changed and provides real-time monitoring

• Manufacturing process accidents due to Differential Pressure ascent / descent can be prevented.
• The Differential Pressure can be FDC managed by interlocking to the DP System.
• Manufacturing process accidents due to Differential Pressure ascent / descent can be prevented by interlocking to the DP System.
• Real-time Monitoring is available.

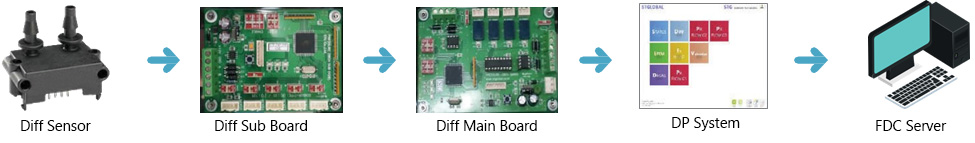

Diagram

SENSOR SPECIFICATION

Size	30mm x 20mm x 20mm
Weight	5g
Material	Plastic
Response Time	4.6ms 12-bit resolution
Measurement Range	Measurement Range -25 ~ 25Pa / -125 ~ 125Pa / -500 ~ 500Pa
Operating Temperature	-20℃ ~ +80℃
Target	Air, N2

BEFORE / AFTER COMPARISON

Description	Before	After
FDC Interlock (Main)	X	O
Trend Management	X	O
Accident Prevention	X	O
